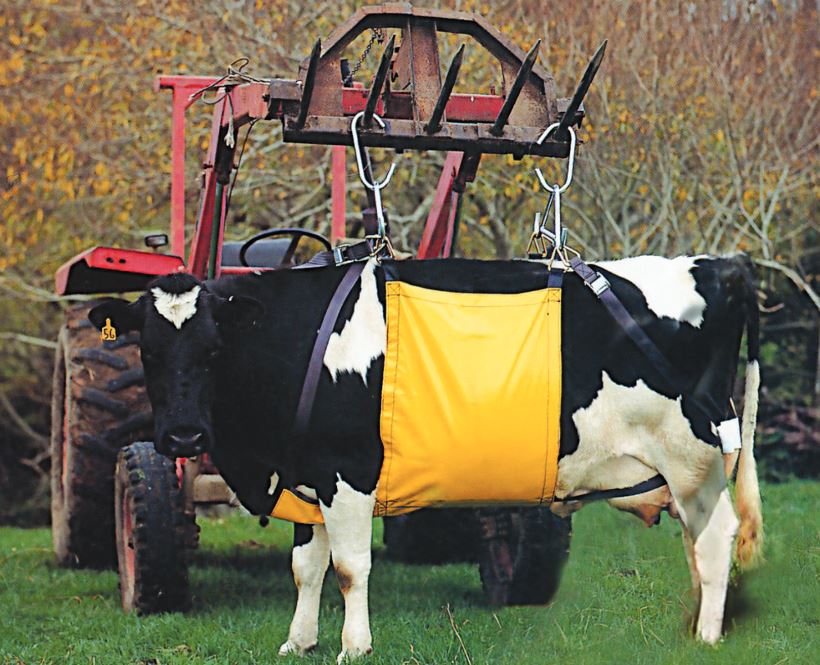

Easy Cow Lifter

Easy Cow Lifter can lift a large cow using loader arms or hay forks, making it a simple and quick one-person operation. Hooks are strong and zinc plated for durability. Sling is made of heavy-duty PVC with reinforced polyester webbing straps and is rated to hold 2200lbs!  The width of the sling helps to ensure there are no pressure points. Crossed straps placed behind the udder and under the tail provide full support, allowing the cow to remain in the sling comfortably. The sling can be used to transport a cow to the barn. Complete Easy Cow Lifter includes sling, transport bag, hooks, gambrels and instructions. Weight 21 lbs.

Ships via FedEx or UPS Ground. Please allow 2 - 5 business days for delivery.

Having an emergency? This product can be shipped via Next Day Air (Monday - Friday) in most cases. Please contact us for pricing and availability.

INSTRUCTIONS ON HOW TO USE:

1. Remove front end loader bucket and attach the C-hooks to the bucket pivot holes of the front end

loader frame or hay forks.

2. Lay the sling out adjacent to the cow, ensuring the brisket support is to the front and the webbing side

upwards.

3. Spread the front and rear straps out and away from the sling. Roll the cow onto her stomach in the

center of the PVC section. If you cannot roll the cow over, you can work the sling under the cow by

pulling on the lifting triangles sewn at the end of the PVC section.

4. Connect the four triangles at the end of the yellow PVC section to the gambrel hooks.

5. Position the rear straps between the udder and the legs and slide the rear support pad halfway between

the udder and tail and connect to the gambrel hooks.

6. Position the front straps between the front legs and CROSS OVER above the neck and connect to the

gambrel hooks.

7. Lower the lifting device and connect the C-hooks to the gambrels.

8. Tighten the front and rear straps before you make the initial lift.

9. Now lift the cow and ensure that the sling is as far forward as possible and that no pressure is on the udder.

10. Adjust the front and rear strap lengths to achieve even support of the cow between these straps, the

brisket support, and the main sling area.

11. The cow can now be lifted entirely off the ground and transported safely into a barn.

12. Used for short periods, you encourage blood circulation and feeding, then by reducing the height lifted

over a period, the cow becomes fully mobile again.

13. Pivot bar available by request for use with Easy Cow Lifter when used in wintering.
